Gallery

The board and its interface

The photographs show the assembled Rev B2 board. The screen images were drawn on a computer by DCP-3's own interface code, using its fonts and bitmaps. They are enlarged four times from the phone's 84 × 48 pixels and tinted green for readability.

Below are standby, the animated main menu, Games, Snake, message composition, a call and the charging dialogs. Contact names, the time and operator text are examples.

Board photographs | Interface captures

Rev B2 hardware

Component side: Telit module, SIM holder, battery contacts, RF circuitry and board connectors.

Keypad side: RP2354B area, keypad contacts, buzzer and headset connector.

DCP-3 interface sampler

84 × 48 source pixels, displayed at four times the original size.

Standby

The standby screen, with “Network” and 12:34 as example text.

Messages menu

The animated Messages icon in the main menu.

Games menu

Snake selected in the Games menu.

Snake

A game of Snake.

SMS composer

Writing a message. The screen shows the input mode and the number of characters remaining.

Connected call

The call screen, with a contact name and elapsed time.

Charging dialog

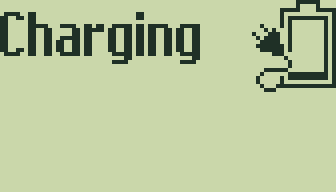

The Charging dialog and its battery animation.

Battery full dialog

The Battery full dialog.
